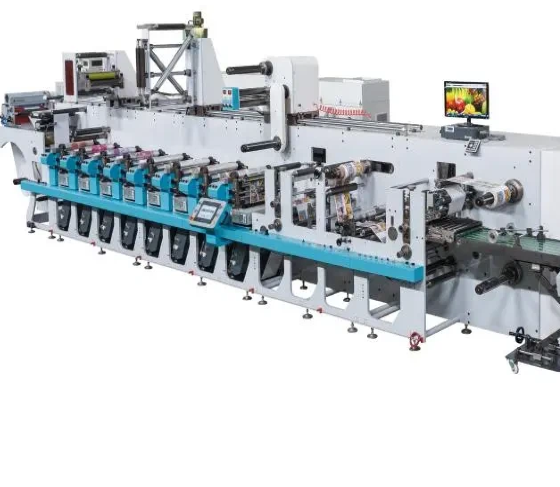

Flexo Printing Machine: Quality Factors and Strategies for Stable High-Performance Output

In today’s competitive packaging and printing market, Flexo Printing Machines have become indispensable tools for achieving efficient, high-quality, and sustainable production. Their ability to print on a wide range of substrates—from paper and cardboard to flexible plastic films—makes them ideal for industries such as food packaging, labeling, and consumer goods. However, maintaining consistent print quality requires a deep understanding of the many variables that influence the flexographic process. From ink transfer dynamics and substrate properties to web tension and mechanical precision, each element plays a crucial role in ensuring print stability and visual consistency. This article explores the critical factors affecting flexo print quality, common printing defects, control strategies, and maintenance practices that transform a flexo press into a reliable high-performance system.

Key Factors That Affect Flexo Print Quality

To achieve consistent, high-quality prints, one must pay attention to several interdependent factors:

Ink transfer dynamics: How pigment particles move from anilox to plate to substrate, influenced by viscosity, surface energy, contact mechanics.

Substrate characteristics: Surface energy, smoothness, porosity, cleanliness, dimensional stability, and how well the substrate interacts with the ink.

Metering system accuracy: The design and condition of the anilox roller, doctor blade, chamber system, and consistency of ink supply.

Impression / contact pressure: The squeeze or contact force between plate and substrate, which must be uniform and optimized.

Web tension & registration control: Stable tension and precise alignment minimize misregistration, distortion, or drift.

Drying / curing system performance: Ensuring ink is dried / cured without undue spread, smearing, or substrate deformation.

Mechanical precision & stability: Backlash, vibration, bearing wear, thermal expansion, frame rigidity all influence print fidelity.

Automation & real-time feedback: Inline sensors, defect detection, closed-loop controls help maintain consistency.

Maintenance & component wear: As components degrade (e.g. blade edge, roller wear, contamination), print quality drifts unless controlled.

Understanding and optimizing these factors is essential to turning a flexo press into a stable, high-performance printing platform.

Common Printing Defects & Root Cause Analysis

Here are several frequently encountered flexo printing defects, their typical causes, and mitigation strategies.

Registration Deviation (Misregistration)

Symptom: Color layers misalign; edges appear offset or ghosted.
Typical Causes:

• Mechanical play or backlash in registration sleeves or drive trains

• Web tension fluctuations or relaxations

• Thermal expansion of parts or substrate creep

• Poor mounting or shifting of plates/sleeves

Mitigation Strategies:

• Use high-precision servo or synchronized drives

• Tighten and maintain registration locking mechanisms

• Control web tension zones carefully, minimize slack

• Use pre-registration routines to align before full speed run

• Periodic mechanical calibration and backlash inspection

Ink Spots / Blotches / Dirty Print

Symptom: Unintentional dark or irregular spots, smeared marks.
Typical Causes:

• Anilox cell blockage or partial clogging

• Contaminants or dust on rollers, plates, web

• Ink over-supply or pooling

• Poor blade condition or misalignments

Mitigation Strategies:

• Frequent cleaning of anilox (chemical or ultrasonic)

• Maintain clean pressroom environment (dust control, air filters)

• Use web cleaning, ionizers, static eliminators

• Inspect blade edges and replace when worn

• Avoid over-inking; adjust pump/flow rates

Web Instability / Running Error

Symptom: Web wandering, wrinkling, lateral shift, inconsistent feed.
Typical Causes:

• Uneven tension, slip in rolls or clutches

• Improper alignment of rollers or guide rails

• Substrate slipping due to low friction surfaces

• Mechanical runout in rollers or shafts

Mitigation Strategies:

• Use closed-loop tension control and dancer systems

• Align web guides, rails, and rollers precisely

• Use suitable gripping or vacuum assist if needed

• Inspect rollers and bearings for runout or wobble

4. Other Defects (Bridging, Mottling, Ghosting, Smearing)

Bridging / Filling-in: Excessive ink causing small gaps in halos to fill over.

Mottling / uneven solid: Patchy appearance in solid fills due to inconsistent transfer or substrate variation.

Smearing / Ghosting: Poor drying or substrate slippage producing trailing or faint shadows.

Diagnosing these often requires focusing on interlinked causes: ink volume, drying, pressure, substrate, and machine stability.

Key Points in Regulating Ink Viscosity & Transfer Rate

Maintaining correct ink viscosity and efficient transfer is vital for consistent print quality.

The Role of Viscosity

Ideal viscosity allows ink to fill anilox cells, transfer cleanly to the plate, and then to the substrate.

If too viscous: incomplete transfer, fill-in gaps.

If too low: over-inking, flooding, smearing, bleed.

Temperature, solvent ratio, pigment load, and resin composition all influence viscosity.

Transfer Rate (or Efficiency)

Defined as the amount of ink that moves from anilox to plate to substrate relative to the initial supply.

Efficiency losses appear as ink remaining in anilox or being wiped away.

Control Techniques & Best Practices

Temperature control of ink (in tank, lines, rollers) to maintain consistent viscosity.

Recipe-based settings: for each job store optimal pump rates, blade pressures, flow settings.

Banding / test strips: Use anilox bands to test different volumes and find ideal volume for given job.

Inline densitometry / spectrophotometry: Monitor ink density in real time and feedback to ink pumps.

Doctor blade adjustments: Blade angle, pressure, contact uniformity influence how closely the anilox is wiped.

Routine monitoring: Track viscosity, solids content, pigment dispersion, and keep them within tolerances.

By rigorously controlling these parameters, print runs maintain stability over long periods.

Monitoring Wear in the Anilox & Doctor Blade Systems

Because these two subsystems directly control ink metering, their wear and condition significantly affect print quality over time.

Anilox Roller Wear and Clogging

Over time, the surface coating can erode, cells can widen or deform, reducing effective cell volume.

Clogging or partial blockage of cells reduces uniform ink distribution.

Use measurement tools (e.g. laser profilometers, cell volume testers) periodically to assess roller health.

Keep cleaning logs and schedule periodic reconditioning before degradation becomes substantial.

Doctor Blade / Chamber Blade Degradation

Blade edges dull, burr, or deform over time.

Worn blades lead to inconsistent wiping, streaks, or over-supply.

Inspect blade edges (magnification), check for bending or edge degradation.

Replace blades per life cycle or when print quality shows signs of degradation.

In both cases, tracking cumulative hours, print run data, and correlating to quality drift can alert you to preemptive replacement before print quality suffers.

Strategies for Pressure & Tension Adjustment

The interface between plate and substrate is controlled by impression pressure, while the substrate path must maintain stable tension. Proper tuning of both is central to image consistency.

Impression Pressure

Pressure should be uniform across the width; edge drop-off or over-pressure can distort dots.

Use pressure mapping film or sensor arrays to assess contact uniformity.

Adjust supporting rollers, compliance pads, or impression cylinder stiffness to correct local pressure variation.

Web Tension Control

Maintain stable tension through servo or closed-loop systems to prevent stretching, drift or slack.

Use sensors (load cells, dancers) to regulate tension zones.

Avoid abrupt tension changes; ramp transitions gently.

On flexible substrates (films), account for creep and relaxation — sometimes lower tension is better to minimize drift.

Combined Optimization

Because pressure and tension interact (excessive tension can squeeze ink, or substrate may distort under pressure), adjustments often require iteration.

Operator feedback, mapping tools, and trial runs help dial in the optimal balance for each substrate + ink + speed combination.

Using Automated Inspection Systems for Quality Control

Integrating automated inspection and feedback systems helps maintain print consistency and reduce waste.

Inline Vision Systems

Use line-scan or area cameras to monitor the printed web continuously.

Detect defects such as streaks, voids, smudges, registration drift, pinholes.

Flag or mark regions for quality review or automatic rejection.

Inline Densitometer / Spectrophotometer

Real-time measurement of color density or color deviation from target profiles.

Feedback to ink pump or metering system to correct drift.

Registration Sensors & Auto Correction

Sensors read registration marks and send feedback to servo drives or actuators to adjust alignment dynamically.

This reduces the need for manual correction and is especially helpful during run-ups or job changes.

Data Logging & Predictive Analytics

Collect long-term data on defect rates, density drift, pressure fluctuation, etc.

Analyze trends, anomalies, and correlations to anticipate maintenance or parameter drift.

Use these insights to improve process recipes, maintenance scheduling, or operator training.

Such automation reduces human error, improves consistency, speeds detection, and supports continuous improvement.

Maintenance & Periodic Upkeep Checklist

To preserve print quality and stability, the following checklist (daily, weekly, monthly, quarterly) is recommended:

Consistently following this checklist helps ensure that quality does not degrade slowly over time.

Systematic Approaches to Improving Flexo Print Stability

To elevate print operations beyond reactive maintenance, consider the following holistic strategies:

Press “profiling” & recipe library

At machine commissioning, run test jobs across various substrates, speeds, and inks. Store optimized settings (pressure, flow, web tension) as job recipes for future runs.

Standard Operating Procedures (SOPs)

Document setup procedures, changeover protocols, defect diagnosis steps, cleaning processes — making them repeatable and consistent across operators.

Closed-loop control & automation

Invest in inline inspection (vision, densitometry, register sensors) linked with automatic correction capabilities.

Predictive maintenance

Use logged data (defect trends, performance drift) to predict when a component (e.g. anilox, blade, bearing) is nearing end of effective life, and schedule proactive replacement.

Operator training & skills development

A well-trained operator is a key line of defense. Provide ongoing training in print theory, troubleshooting, and maintenance best practices.

Environmental control

Maintain stable temperature, humidity, and clean air in the pressroom. Environmental shifts can impact ink behavior, substrate stability, and mechanical expansion.

Quality audit and benchmarking

Periodically run control charts or test prints and compare against baseline standards. Investigate deviations and refine processes.

These systems turn a flexo press from a chancy instrument of quality drift into a reliably stable, high-performance production tool.

Conclusion

Achieving superior and consistent print quality with a Flexo Printing Machine depends on mastering the intricate balance between mechanical precision, ink control, substrate handling, and automated feedback systems. By implementing systematic maintenance, optimizing viscosity and pressure parameters, and integrating intelligent inspection technologies, manufacturers can ensure long-term production stability, reduce waste, and meet evolving environmental and quality standards.
