In the modern packaging industry, the Flexo Printing Machine has become one of the most important and widely used printing systems. Known for its versatility, high speed, and ability to print on a wide range of substrates, flexographic printing is the technology of choice for flexible packaging, labels, corrugated boxes, and various consumer product packages.
With the global shift toward eco-friendly packaging, the Flexo Printing Machine stands out for its compatibility with water-based inks and recyclable materials. It provides not only outstanding print quality but also sustainable production efficiency.
This article explores the basic working principles, structural components, ink transfer mechanisms, and tension control systems of the Flexo Printing Machine, and highlights how structural optimization directly improves printing performance.
The Flexo Printing Machine operates based on the principle of relief printing, where the image area of the printing plate is raised above the non-image area. The printing plate, usually made of a flexible photopolymer or rubber material, transfers ink from the anilox roller to the substrate under precise pressure.
The elasticity of the flexographic plate allows it to adapt to various materials — from paper and plastic films to aluminum foils and nonwoven fabrics — making it ideal for flexible packaging applications.
The printing process involves four essential steps:
Ink supply from the ink pan.
Ink metering using the anilox roller.
Ink transfer to the raised image area of the plate cylinder.
Printing on the substrate as it passes between the plate cylinder and the impression roller.
This seemingly simple process hides a high degree of precision. Every roller, cell pattern, and tension adjustment plays a critical role in ensuring consistent color density, sharp detail, and print repeatability across thousands of meters of material.

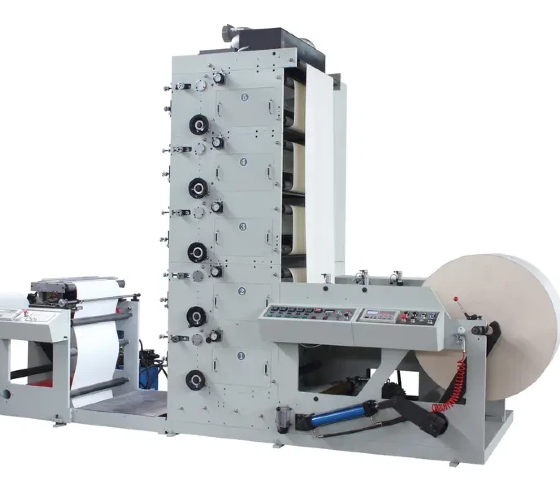

A modern Flexo Printing Machine is a highly integrated system that combines mechanical precision, fluid dynamics, and electronic control. The key structural components include:
The plate cylinder holds the flexible printing plate and is responsible for transferring the image onto the substrate accurately. Modern designs often feature quick-change mechanisms, allowing operators to swap plates efficiently for different jobs. This component ensures consistent registration and high-quality prints across long production runs, making it a critical element for maintaining precision and minimizing downtime in commercial flexographic printing operations.
The anilox roller is a precisely engraved cylinder that meters and delivers a uniform ink film to the plate. Its cell geometry, volume, and line screen directly affect color density, tonal range, and image quality. Proper selection and maintenance of anilox rollers are essential for consistent ink transfer, accurate color reproduction, and achieving sharp, high-resolution prints, especially in multi-color packaging and labeling applications.
The doctor blade system removes excess ink from the anilox roller surface, ensuring that only the ink within the engraved cells reaches the plate. Blade angle, pressure, and material type are critical for controlling ink film thickness, minimizing streaks, and preventing ink starvation or over-inking. A well-adjusted doctor blade system directly contributes to consistent print quality and reduced maintenance requirements during extended production runs.
The ink supply system typically includes an ink pan, fountain roller, and circulation pumps that maintain optimal ink viscosity and prevent foaming. Proper management ensures stable color output and reduces the risk of print defects. Advanced systems may include temperature control and automated circulation, which improve efficiency, reduce downtime, and support high-speed production while maintaining consistent print quality across long runs.
Together, these systems ensure that the ink film is uniform, transfer is consistent, and printing precision remains stable even under high-speed conditions.
The ink transfer mechanism in a Flexo Printing Machine is a continuous, precise sequence that depends on roller alignment, surface tension, and pressure control.
Ink metering is the critical process of evenly distributing ink across the anilox roller surface. Each microcell on the roller is precisely calibrated to carry a specific volume of ink, ensuring consistent color density and uniform coverage. Proper ink metering prevents over-inking or under-inking, which can cause defects such as smudging or uneven tones, and is essential for achieving high-quality, repeatable prints in flexographic operations.
The doctor blade regulates the amount of ink on the anilox roller by removing excess ink from its surface. This ensures that only the precise ink volume within the engraved cells reaches the plate, maintaining consistent film thickness. Correct blade angle, pressure, and material type are essential to prevent streaks or ink starvation, supporting reliable color reproduction and stable print quality across multiple production units.
Pressure control is managed by the impression cylinder, which applies just enough force to transfer the ink from the plate to the substrate efficiently. Proper adjustment ensures complete ink transfer without deforming the plate or substrate, preserving dimensional accuracy and image sharpness. Maintaining consistent pressure across different printing units is vital for high-quality, defect-free flexo printing, especially in multi-color or high-speed production environments.
Modern flexographic presses use pneumatic or servo-driven impression systems for pressure regulation. These systems adjust automatically based on substrate thickness and print speed, ensuring uniform ink density and dot gain control across long production runs.
By optimizing the pressure and ink film thickness, manufacturers achieve high-definition printing suitable for food packaging, flexible pouches, and shrink sleeves.
The tension control system of a Flexo Printing Machine is vital for maintaining print registration and substrate stability. Improper tension may cause stretching, wrinkling, or misalignment of the printed image.
Unwinding Section:Ensures stable feeding of raw material. Servo-driven unwinders provide automatic tension compensation based on substrate diameter.
In-Process Tension Monitoring:Sensors and load cells detect minute variations in web tension. The control system adjusts roller speeds accordingly.
Rewinding Section:Collects the finished material under controlled tension to prevent curl or deformation.
Advanced machines utilize closed-loop tension control with real-time feedback, synchronizing the entire web path from unwinding to rewinding. This coordination enables precise multi-color registration even at speeds exceeding 400 meters per minute.
The Flexo Printing Machine is recognized for combining high productivity, flexibility, and cost efficiency. Its advantages include:
Flexo Printing Machines can produce sharp, vibrant images with excellent color consistency across various substrates. Advanced ink metering and precision anilox rollers ensure accurate dot reproduction, maintaining image quality even during long production runs and multi-color printing, making them ideal for packaging, labels, and high-resolution graphics.
These machines are designed for continuous operation, achieving production speeds of hundreds of meters per minute. High-speed capabilities combined with automated registration and tension control allow manufacturers to meet tight deadlines while maintaining print accuracy and minimizing downtime, significantly improving overall production efficiency and throughput.
Flexo presses can print on a wide range of materials, including paper, plastics, metallic films, and other flexible substrates. This versatility allows manufacturers to produce diverse packaging and labeling solutions, accommodating multiple industries and product types without needing separate equipment for each material type.
The relatively low cost of plates and fast setup make flexo presses suitable for medium-to-large production volumes. Quick plate changes and minimal downtime allow manufacturers to handle batch variations efficiently, offering flexibility in production scheduling while maintaining consistent print quality across multiple runs.
Photopolymer plates used in flexo printing are durable, reusable, and easy to produce. Their longevity reduces recurring costs and provides excellent value for mid-to-high-volume production. Combined with minimal maintenance needs, these plates contribute to the overall cost-effectiveness of flexographic printing operations.
Flexo machines can integrate in-line converting processes such as die-cutting, laminating, varnishing, and slitting. This capability streamlines production workflows, reduces handling, and eliminates the need for separate finishing equipment, improving efficiency and shortening production cycles for finished packaging products.
Flexo presses are compatible with water-based inks and recyclable substrates, reducing VOC emissions and environmental impact. Their design supports sustainable packaging production and aligns with global environmental regulations, enabling companies to meet eco-friendly standards while maintaining high-quality, cost-efficient printing operations.
In summary, the Flexo Printing Machine offers an ideal balance of speed, cost-efficiency, and environmental responsibility — making it the preferred technology for the packaging and labeling industry.
The performance of a Flexo Printing Machine depends largely on the precision of its structural design. From the engraving of the anilox roller to the servo synchronization of the cylinders, every detail contributes to consistent ink delivery, accurate registration, and minimal waste.
Structural optimization improves:
Ink transfer stability through advanced anilox cell design.
Registration accuracy via servo-driven control systems.
Substrate adaptability with intelligent tension management.
Operational efficiency by integrating automation and digital monitoring.
As packaging demands evolve toward high-definition, eco-friendly, and personalized printing, the continuous innovation in Flexo Printing Machine design is key to meeting market needs.
For businesses seeking high-performance flexographic printing solutions, it is highly recommended to explore the expertise of Zhejiang GREENPRINT Machinery Co., LTD.
This company specializes in the design, manufacturing, and customization of Flexo Printing Machines with advanced automation, precise ink control systems, and robust mechanical structures. Their machines are widely adopted in global packaging production lines for their efficiency, durability, and superior print quality.
If your enterprise aims to upgrade to a more efficient and sustainable printing system, Zhejiang GREENPRINT Machinery Co., LTD. offers the ideal partnership for achieving that goal.
