Printing is fast, but labels still back up. Why does finishing slow everything down?
This article explores how production stalls after printing. It explains what boosting label output really means on the floor.
You will learn where a Die Cutting Machine fits. And how automation improves speed, stability, and waste control.

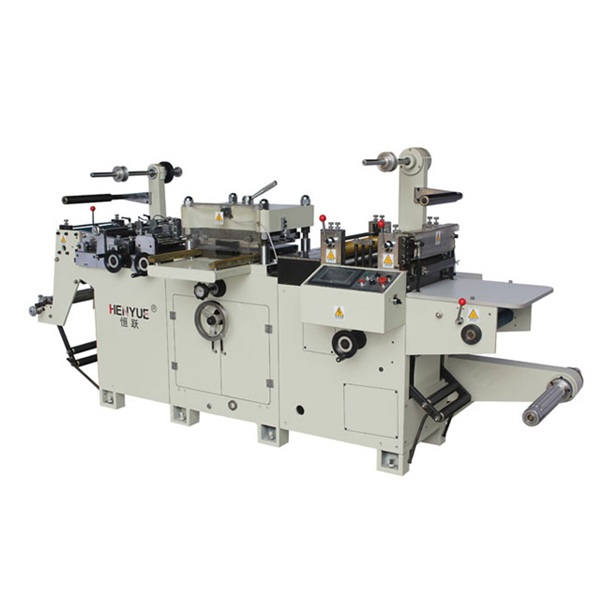

Modern sticker label production rarely slows down because of cutting speed alone. In most real workshops, throughput is limited by stability, repeatability, and how often the line is forced to stop. An automatic Die Cutting Machine addresses these constraints systematically by combining controlled feeding, servo-driven motion, and job-level automation. Instead of relying on operator intervention to correct errors mid-run, the machine is designed to keep production moving predictably across long and short jobs alike.
In roll-based sticker production, feeding instability is one of the most underestimated causes of lost output. Automatic die cutting systems use closed-loop web control to manage unwind tension, edge alignment, and material tracking continuously, rather than correcting problems after they occur. This is especially important for self-adhesive materials, where liners can stretch, shrink, or deform under inconsistent pull.
From a production perspective, the impact shows up less in dramatic failures and more in micro-stops—brief slowdowns caused by web wandering, liner skew, or tension imbalance. Over an entire shift, these interruptions compound into measurable throughput loss. By maintaining constant web behavior, automatic feeding systems allow the machine to sustain stable operation even as speed increases or material rolls change mid-job.
Typical improvements enabled by automated feeding and web control include:
● Fewer unplanned stops caused by liner breaks or edge misalignment
● More consistent cut positioning over long runs
● Reduced need for manual tension adjustment when switching materials
Rather than “running faster,” the real gain comes from running without interruption.
At higher line speeds, mechanical tolerances that are negligible at low speed begin to matter. Servo-driven motion systems replace fixed mechanical linkages with digitally controlled axes, allowing the cutting unit to respond precisely to real-time position data. This becomes critical when cutting complex sticker shapes or small labels that leave little margin for error.
Servo control ensures that each cut follows the same path, regardless of acceleration, deceleration, or minor variations in material behavior. Over long runs, this consistency directly affects waste rates: fewer off-register cuts mean fewer rejected labels and less need to slow the machine down to “play it safe.”
From an output standpoint, servo-driven systems support throughput by:
● Maintaining cut accuracy as speed increases
● Reducing cumulative drift across repeated cycles
● Allowing finer control of pressure and timing for kiss cutting vs. through cutting
The result is not just higher nominal speed, but confidence that speed will not compromise usable output.
In many label operations, production efficiency is limited not by long runs, but by frequent job changes. Automatic die cutting machines increasingly rely on job recognition and recall systems to reduce setup time between sticker designs. Once a job is identified—often through digital job data or visual markers—the machine automatically applies stored parameters for alignment, pressure, speed, and cut depth.
This capability is particularly valuable for short-run or mixed-job environments, where manual setup would otherwise consume a disproportionate share of production time. Instead of recalibrating from scratch, operators move quickly from one job to the next with predictable results.
The effect on throughput is indirect but significant:
● Less idle time during changeovers
● Fewer setup-related errors that require rework
● More consistent output quality across different operators and shifts
Over a full production day, reduced setup friction can contribute as much to throughput as higher cutting speed.
Published speed ratings often highlight maximum meters per minute, but real production output depends on how long the machine can sustain effective operation. A die cutting line that runs slightly slower but avoids stops, waste, and rework will typically outperform a faster machine that requires constant intervention.
To illustrate the difference, consider how “speed” translates into usable output:
Factor | High Nominal Speed | High Effective Throughput |
Line speed | Very high peak m/min | Moderate to high, stable |
Stops and restarts | Frequent | Minimal |
Waste rate | Elevated at speed | Controlled |
Operator intervention | Constant adjustments | Mostly monitoring |
Usable labels/hour | Inconsistent | Predictable and higher |
In adhesive sticker production, registration accuracy and cut quality determine whether speed translates into usable labels or hidden waste. Even small misalignment between printed graphics and cutting paths becomes immediately visible once labels are dispensed, rewound, or applied. For this reason, registration control, material behavior, and cut-depth selection must work together as a single system rather than isolated adjustments.
Instead of treating kiss cutting and through cutting as simple “cut mode choices,” high-performing operations evaluate how registration stability holds under speed, how drift evolves during long runs, and how early defects signal deeper process imbalance. This section breaks down those interactions from a production-focused perspective rather than a purely mechanical one.
Printed labels require the Die Cutting Machine to follow the artwork repeat, not just a fixed mechanical pitch. Registration systems achieve this by continuously detecting printed reference points and synchronizing cut timing to those positions. When the loop is stable, alignment corrections happen automatically in the background, allowing the line to stay at production speed instead of slowing down for manual checks.
From a workflow perspective, registration accuracy affects two different moments in production. The first is job startup, where faster alignment means fewer trial cuts and less material wasted before approval. The second is run stability, where consistent alignment over time prevents slow drift from turning into large batches of off-register labels discovered too late.
In practical production terms, a reliable registration system helps by:
● Maintaining cut-to-print alignment even when print repeat length varies slightly.
● Reducing the need to lower speed purely as a safety margin.
● Improving repeatability when the same sticker design is re-run weeks or months later.
Even with optical registration, drift can accumulate as material behavior changes during the run. Self-adhesive constructions respond to tension, heat, and adhesive resistance in ways that are often gradual rather than sudden. When drift builds slowly, operators may not notice until cut quality begins to degrade, making it harder to trace the root cause.
Effective drift control starts with repeatable setup, not constant fine-tuning. Stable unwind tension, consistent nip pressure, and a predictable web path allow the registration system to make small, smooth corrections instead of large, reactive ones. The goal is to keep the process inside a controllable range where alignment adjustments remain subtle and stable.
Common drift patterns and what they usually indicate:
● Gradual drift over long runs often points to liner stretch, adhesive resistance, or heat buildup.
● Sudden drift after stops typically relates to re-threading differences, splice thickness, or restart tension spikes.
● Drift appearing only at higher speed usually indicates that the web path is stable at low speed but unstable under increased inertia.
Kiss cutting and through cutting impose very different tolerance windows, even when using the same Die Cutting Machine. Kiss cutting requires cutting through the face stock and adhesive while preserving liner integrity, which leaves very little room for depth variation. Through cutting intentionally separates all layers, shifting the main risks toward edge tearing, shape distortion, and downstream handling issues.
Rather than viewing cut depth as a single numeric setting, experienced operators treat it as a balance between material behavior, registration stability, and end-use requirements. Dispensing systems prioritize liner condition, while stackable or individually handled labels often benefit from clean through cuts that simplify finishing.
Cut Mode | What it is optimized for | Primary risk if misadjusted | Typical waste pattern |
Kiss cut | Dispensing reliability and liner integrity. | Liner scoring or incomplete separation. | Scored liners, uneven release, partial cut-through. |
Through cut | Full shape separation for finishing. | Edge tearing or deformation. | Ragged edges, distorted corners, tearing on rewind. |
Mixed production | Flexibility across job types. | Setup inconsistency between jobs. | One job stable, next job immediately defective. |
In most label operations, waste announces itself through repeatable defects before scrap rates spike. Liner scoring is often the first visible warning in kiss cutting, signaling excessive or uneven depth that may not yet be obvious in finished appearance. Incomplete cuts tend to appear first in tight corners or dense shapes, indicating pressure limits, die wear, or subtle material variation.
Edge tearing is frequently a secondary symptom rather than the original problem. It often emerges after pressure has been increased to compensate for incomplete cuts, masking the underlying issue of tension instability or misalignment. Recognizing these signals early allows corrective action without escalating waste.
How experienced operators interpret these signals together:
● Liner scoring suggests the safe kiss-cut depth window has been exceeded and may worsen as drift increases.
● Incomplete cuts indicate insufficient penetration or tool wear rather than random failure.
● Edge tearing usually confirms that pressure increases are compensating for instability instead of resolving it.
By treating these defects as diagnostic information rather than isolated flaws, production teams maintain registration accuracy and cut quality throughout the run, keeping high-speed sticker production economically sustainable instead of technically fragile.
In adhesive sticker production, cutting performance is shaped as much by material behavior as by machine capability. Even a well-configured Die Cutting Machine will struggle to maintain stable output if the face stock, adhesive, and liner interact unpredictably under tension and pressure. Understanding how these layers behave together helps explain why identical settings can produce clean results on one job and rising waste on another.
Rather than treating adhesive labels as a single “material type,” experienced operators evaluate how each layer responds to speed, tension, and cutting force. This perspective makes it easier to anticipate registration drift, cut cleanliness issues, and matrix instability before they appear as visible defects on the roll.
A self-adhesive label is a layered system, and each layer plays a different role during die cutting. The face stock defines visual quality and stiffness, the adhesive influences resistance and release behavior, and the liner provides dimensional stability during cutting and waste removal. When these layers respond differently to tension or pressure, cutting stability becomes harder to maintain.
From a production standpoint, instability often arises when one layer compensates for another. A soft face stock may compress under pressure while a rigid liner resists movement, or a high-tack adhesive may increase drag during matrix stripping. These interactions explain why small changes in speed or pressure can suddenly affect cut depth or registration, even if the machine itself has not changed.
How each layer typically influences output during die cutting:
● Face stock. Determines how cleanly the cut edge forms and how much pressure is required. Thicker or more elastic face stocks increase sensitivity to depth variation and tooling wear.
● Adhesive. Affects drag and release during waste removal, influencing tension balance and liner stress. High-tack adhesives often amplify matrix instability if not compensated for.
● Liner. Acts as the structural backbone during cutting. Variations in liner stiffness or elasticity directly affect registration consistency and liner scoring risk.
When these three layers are considered together, cutting issues become easier to diagnose as material-driven behavior rather than random machine inconsistency.
Paper and film face stocks behave very differently under die cutting, even when adhesive and liner types appear similar. Paper stocks generally offer higher friction and dimensional stability, which can make registration easier to maintain but increase the force required for clean cuts. Film stocks, by contrast, are more elastic and sensitive to tension changes, making them prone to stretch-related drift at higher speeds.
These differences show up most clearly when production speed increases or when jobs involve fine details. Paper labels often tolerate minor setup variation without immediate failure, while film labels tend to expose small instability quickly through edge quality issues or inconsistent cut depth. As a result, the same Die Cutting Machine may require different operating strategies depending on the face stock type.
Face stock type | Typical cutting behavior | Registration sensitivity | Common waste pattern |
Paper | Stiffer, higher friction, predictable cut path. | Lower, more forgiving at moderate speed. | Dusting, rough edges if tooling dull. |
Film (PET, PP, PE) | Elastic, low friction, tension-sensitive. | Higher, especially at increased speed. | Edge lifting, stretching, inconsistent depth. |
In practice, recognizing whether a job is paper-dominant or film-dominant allows operators to adjust expectations and priorities. Paper runs often focus on tooling condition and pressure consistency, while film runs demand tighter tension control and more conservative speed increases. Aligning machine behavior with material behavior is what ultimately protects output, keeping registration stable and waste rates predictable rather than reactive.
In high-speed sticker label production, waste stripping often determines whether a line runs smoothly or becomes a stop-and-fix operation. Even when cutting accuracy and registration are stable, matrix removal can quietly limit throughput by forcing slowdowns, re-threading, or frequent restarts. A Die Cutting Machine designed with effective waste stripping treats matrix handling as a controlled process rather than an afterthought, keeping output predictable across long and short runs alike.
From a production perspective, the matrix is not “waste” until it leaves the machine. Until then, it is an active element that applies tension, resists peeling, and interacts with adhesive and liner behavior. Understanding how and where matrix-related slowdowns originate makes it possible to protect speed without sacrificing cut quality.
Matrix stripping is one of the few processes that becomes harder as speed increases. As line speed rises, peel forces increase, adhesive resistance grows, and small instabilities that were invisible at low speed suddenly cause breaks or snags. This is why many sticker lines run well below their nominal cutting speed: the matrix, not the die, sets the ceiling.
What makes matrix removal especially limiting is that failures are rarely isolated. A single matrix break often leads to a full stop, re-threading, loss of registration reference, and several meters of scrap before stable running resumes. Over a shift, these interruptions reduce effective throughput far more than a modest reduction in cutting speed would.
In practical terms, matrix-related slowdowns usually result from:
● Increasing peel force as speed rises, amplifying adhesive resistance.
● Uneven tension between the main web and the waste take-up.
● Small design features that weaken the matrix and fail under load.
When matrix behavior is stable, machines can run closer to their intended production speed without hidden losses.
Matrix breaks rarely happen at random points. They typically start where the matrix is structurally weakest or where peel forces concentrate. Tight internal corners, narrow gaps between labels, and thin bridges between cut paths all reduce the matrix’s ability to carry tension as it is peeled away.
These vulnerabilities become more pronounced with complex sticker designs or dense layouts intended to maximize material usage. While such layouts may look efficient on paper, they often create fragile matrices that cannot tolerate higher speeds or slight tension imbalance. Recognizing these risk zones during setup allows operators to adjust stripping strategy before failures occur.
Matrix feature | Why it fails under load | Typical symptom during run |
Tight corners | Concentrates peel force at a single point. | Sudden snap at corner exit. |
Small gaps | Leaves minimal matrix width to carry tension. | Progressive tearing along gap line. |
Weak bridges | Cannot distribute load evenly. | Repeated breaks at the same location. |
Understanding these patterns helps teams decide whether to adjust speed, tension, or stripping geometry rather than repeatedly restarting the line.
Effective waste stripping relies on a small number of setup controls working together. Peel angle determines how aggressively the matrix separates from the liner, while tension balance ensures the waste is removed without pulling the main web out of alignment. If either is mismanaged, even a strong matrix can fail prematurely.
Static electricity and cleanliness also play a surprisingly large role. Static can cause the matrix to cling unpredictably to labels or rollers, while adhesive buildup increases drag and disrupts smooth peeling. Addressing these basics often stabilizes stripping more effectively than reducing speed alone.
Setup practices that consistently protect throughput include:
● Setting a peel angle that separates the matrix cleanly without over-stressing narrow sections.
● Balancing waste rewind tension so it removes the matrix without influencing main web tension.
● Controlling static and keeping rollers clean to prevent adhesion and drag buildup.
When peel geometry, tension, and cleanliness are aligned, matrix stripping becomes predictable rather than fragile. This stability allows the Die Cutting Machine to sustain higher effective speeds, turning nominal capacity into real, repeatable output instead of frequent matrix-related slowdowns.
Stable feeding, accurate registration, and clean waste stripping raise real label output. These factors matter more than speed alone in daily sticker production.
Choosing kiss cut or through cut depends on use, not habit. The right cut method reduces scrap while keeping runs consistent.
Die Cutting Machine solutions from Zhejiang GREENPRINT Machinery Co.,LTD. Their machines support reliable output through automation and smart finishing design.
A: A Die Cutting Machine improves efficiency by stabilizing feeding, maintaining registration accuracy, and reducing waste during continuous adhesive sticker runs.
A: For a Die Cutting Machine, output is limited by material behavior, registration drift, and matrix stripping stability rather than nominal cutting speed.
A: A Die Cutting Machine uses kiss cutting for liner-based dispensing and through cutting for full separation, depending on finishing and handling requirements.
A: In a Die Cutting Machine, unstable waste stripping causes stops, re-threading, and scrap, reducing effective throughput even at moderate operating speeds.
