Precision Die-Cutting for Complex Labels: Advantages of Flat Bed Machines

Contents

1. Introduction

2. Why Precision Matters in Complex Label Die-Cutting

3. How Flat Bed Label Roll Die Cutting Machines Achieve Superior Accuracy

4. Structural Advantages of Flat Bed Machines for Intricate Label Designs

5. Performance Comparison: Flat Bed vs. Rotary Die Cutting for Complex Labels

6. Automation, Servo Control, and Stability in Modern Flat Bed Systems

7. Application Scenarios Where Flat Bed Die Cutting Delivers Maximum Value

8. Conclusion

9. FAQ

Introduction

Precision die-cutting plays a decisive role in the quality, usability, and visual impact of modern labels. As label designs become more complex—featuring irregular shapes, fine details, layered materials, and tight tolerances—the limitations of conventional die-cutting methods become increasingly evident. In this context, flat bed technology has emerged as a highly effective solution for manufacturers seeking reliable accuracy and structural consistency.

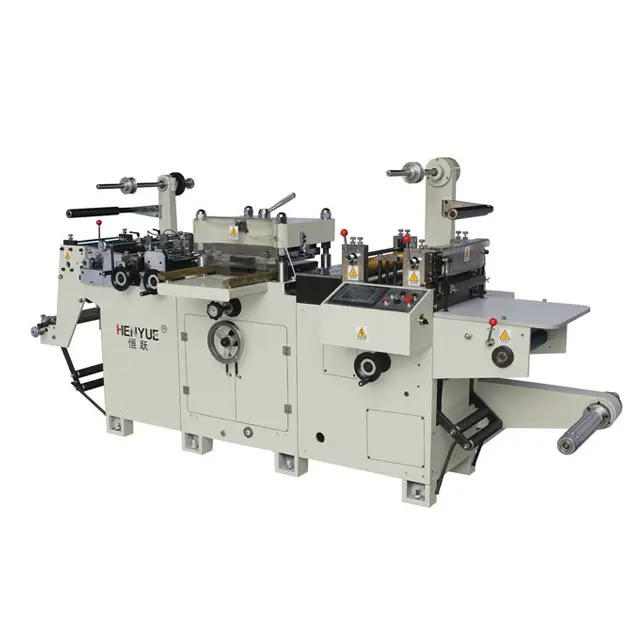

A Flat Bed Label Roll Die Cutting Machine is engineered to handle demanding label geometries with controlled pressure, stable material positioning, and exact cutting depth. Unlike high-speed rotary systems that prioritize throughput, flat bed machines focus on precision, flexibility, and repeatability. This makes them particularly suitable for complex labels where margin of error is minimal and material waste is costly.

Why Precision Matters in Complex Label Die-Cutting

Complex labels are defined not only by their shape but also by their functional and aesthetic requirements. Multi-layer constructions, variable thickness materials, fine internal cutouts, and small radii corners all demand extremely accurate die-cutting. Even slight deviations can result in misaligned graphics, peeling edges, or failure during automated label application. Precision is therefore not an optional feature but a fundamental requirement.

A Professional Flat Bed Label Roll Die Cutting Machine addresses these challenges by using a vertical cutting motion that applies uniform pressure across the entire die surface. This cutting principle allows consistent penetration through face stock while protecting liners and adhesives. For labels with micro-details or dense layouts, this controlled action ensures every cut line is executed exactly as designed.

Additionally, precision die-cutting directly affects downstream efficiency. Labels that are cleanly cut and dimensionally stable feed more reliably into labeling systems, reducing stoppages and rejections. Flat bed machines support this outcome by maintaining tight tolerances across long production runs, even when processing short batches or frequently changing designs. In complex label production, precision is the foundation upon which quality, efficiency, and customer satisfaction are built.

How Flat Bed Label Roll Die Cutting Machines Achieve Superior Accuracy

The accuracy of a Flat Bed Label Roll Die Cutting Machine is rooted in its mechanical structure and motion control philosophy. Unlike rotary systems that rely on continuous rotational contact, flat bed machines use a stop-and-cut process. The material is precisely positioned, held stable, and then cut with a controlled downward stroke. This sequence eliminates many of the variables that introduce errors in complex die-cutting.

Modern flat bed machines often incorporate Servo Driven systems to control feeding, positioning, and cutting depth. Servo motors provide exact motion synchronization, ensuring that each cut aligns perfectly with printed registration marks. This is especially critical for labels with tight graphic-to-cut alignment requirements or multiple nested shapes.

Another key factor is rigidity. A Heavy Duty Flat Bed Label Roll Die Cutting Machine is designed with reinforced frames and cutting platforms that resist deformation under pressure. This structural stability ensures that cutting force is evenly distributed, preventing uneven edges or incomplete cuts. Combined with precise die mounting and adjustable pressure settings, flat bed machines consistently deliver high-accuracy results across a wide range of materials and label complexities.

Structural Advantages of Flat Bed Machines for Intricate Label Designs

Intricate label designs place unique demands on die-cutting equipment. Fine details, sharp internal angles, and closely spaced cut lines require absolute control over cutting depth and force. Flat bed machines are structurally optimized to meet these demands through their planar cutting approach and adaptable tooling configurations.

A Compact Flat Bed Label Roll Die Cutting Machine can accommodate complex die layouts without sacrificing accuracy. Because the cutting surface remains stationary during the cutting action, the die engages the material evenly across its entire footprint. This is particularly advantageous for labels with asymmetric designs or multiple cut depths, as the operator can fine-tune pressure zones to match material characteristics.

Flat bed machines also support a wide variety of die types, including solid dies and flexible dies mounted on flat magnetic plates. This versatility allows manufacturers to switch between designs quickly while maintaining precision. For complex labels that evolve frequently or require customization, the flat bed structure provides the mechanical flexibility needed without compromising cut quality.

Performance Comparison: Flat Bed vs. Rotary Die Cutting for Complex Labels

When evaluating die-cutting solutions for complex labels, understanding the performance differences between flat bed and rotary systems is essential. Each technology has strengths, but their suitability varies significantly depending on design complexity and precision requirements.

The table below highlights key performance factors relevant to complex label production:

A High Speed Flat Bed Label Roll Die Cutting Machine may not match the sheer throughput of rotary systems, but it excels where complexity and accuracy are critical. Rotary machines perform best in long runs of simple shapes, while flat bed machines maintain precision across variable designs, short runs, and intricate patterns. For manufacturers focused on complex labels, flat bed technology offers a more reliable and cost-effective solution in the long term.

Automation, Servo Control, and Stability in Modern Flat Bed Systems

Advancements in automation have significantly enhanced the capabilities of flat bed die-cutting machines. An Automatic Flat Bed Label Roll Die Cutting Machine integrates feeding, registration, cutting, and waste removal into a synchronized workflow. Automation reduces operator dependency while ensuring consistent results across shifts and production cycles.

Servo-driven control systems play a central role in this evolution. By precisely coordinating material feed and cutting motion, servo technology minimizes registration errors and allows rapid adjustments between jobs. This is particularly valuable for complex labels that require frequent changeovers or multiple SKUs within a single production schedule.

Stability remains a defining advantage. Even as automation increases speed, the inherent stop-and-cut design of flat bed machines preserves accuracy. The result is a production environment where complex labels can be manufactured efficiently without sacrificing quality. For operations balancing precision demands with productivity goals, automated flat bed systems provide an optimal middle ground.

Application Scenarios Where Flat Bed Die Cutting Delivers Maximum Value

Flat bed die-cutting technology demonstrates its strongest value in applications where label complexity, material variation, and quality standards intersect. Labels used in technical, regulatory, or premium packaging contexts often feature intricate shapes and strict tolerances that cannot be compromised.

A Professional Flat Bed Label Roll Die Cutting Machine is particularly effective for labels requiring internal cutouts, multi-layer constructions, or variable thickness substrates. These applications benefit from the machine’s ability to apply controlled pressure without distorting materials or damaging liners.

Additionally, short-run and customized label production environments gain significant advantages from flat bed machines. The ease of setup, flexibility in die usage, and consistent accuracy reduce waste and setup time. In markets where differentiation and customization drive value, flat bed die cutting supports both creative freedom and manufacturing reliability.

Conclusion

Precision die-cutting is the cornerstone of successful complex label production, and flat bed technology is uniquely positioned to meet this challenge. Through controlled cutting motion, structural stability, and advanced servo-driven automation, a Flat Bed Label Roll Die Cutting Machine delivers the accuracy and flexibility required for intricate label designs.

While not always the fastest option, flat bed machines excel where precision, adaptability, and material control matter most. For manufacturers focused on producing high-quality, complex labels with minimal waste and consistent results, flat bed die-cutting represents a strategic investment in long-term performance and product excellence.

FAQ

Q1: Why are flat bed machines better for complex labels than rotary systems?
Flat bed machines use controlled vertical cutting with uniform pressure, making them better suited for intricate shapes and fine details where precision is critical.

Q2: Can flat bed die cutting handle different label materials?
Yes. Flat bed machines accommodate a wide range of materials and thicknesses due to adjustable pressure and stable cutting platforms.

Q3: Are flat bed machines suitable for automated production?
Modern flat bed systems are highly automated, integrating servo control, registration systems, and waste removal for efficient operation.

Q4: Does higher speed reduce accuracy in flat bed machines?
Even in High Speed configurations, flat bed machines maintain accuracy because cutting occurs only when the material is fully stabilized.

Q5: Are flat bed machines practical for short production runs?
Absolutely. Their setup flexibility and consistent precision make them ideal for short runs, custom labels, and frequently changing designs.
